BATTERY BDC72

BATTERY BDC72

February 16, 2024 By admin 0

Descriptions:
The Topcon/Sokkia BDC72 grey Li-Ion Battery for Topcon and Sokkia total stations and lasers.
This grey higher capacity battery replaces the older BDC70 black battery which has gone out of production.
Fits: Topcon GM, GT, OS & ES series, Sokkia CX, IM, FX series total stations. Also Topcon TPL6 series pipe lasers.
Note: this battery is NOT compatible with the old black CDC68 charger. Instead, it requires the new grey CDC77 charger TOP1038707-01.

Specifications:
7.2V
Capacity : 5,986 mAh/43.09 Wh
Charging time 8 hours

Buktikan dan dateng langsung ke Base Station.
Alamat : Komplek Sapta Taruna PU Jl Suhodo Blok B2 No 14 Terusan Buah Batu Bandung 40287

– Lokasi Dijalan Utama dan mudah di jangkau.
– Dekat Dengan Tol Buahbatu (akses bisa lebih cepat).
– Parkiran yang Luas.
– Kantor Milik Sendiri.
– Legalitas Jelas dan Terpecaya.
– Bekerja Sama Dengan Beberapa BUMN dan Intasi Pemerintah.
– Pelayanan Ramah dan Harga Bersaing.
– Alat lengkap dan Bergaransi Resmi.

GPS RTK Hemisphere S321

GPS RTK Hemisphere S321

February 16, 2024 By admin 0

GPS RTK GNSS Hemisphere S321

S321 adalah multi-GNSS multi-frekuensi, smart antenna baru dari Hemisphere.
S321 memberikan kinerja yang tangguh dan presisi tinggi dalam paket yang ringkas dan kasar.
Dengan beberapa port komunikasi nirkabel dan antarmuka GNSS terbuka, S321 dapat digunakan dalam berbagai mode operasi.
Gunakan S321 sebagai stasiun pangkalan yang tepat mengirim RTK ke jaringan rover yang ada

FITUR UTAMA:

  • Mesin Athena RTK
  • GPS, GLONASS, BeiDou, Galileo, QZSS
  • 372 saluran
  • Koreksi Atlas disampaikan melalui L-band dan melalui Internet
  • Konektivitas nirkabel melalui Bluetooth dan Wi-Fi
  • UI web yang kuat
  • Dua versi (Masing-masing dapat digunakan sebagai Base atau Rover):
    – UHF GSM / WCDMA
    – GSM / WCDMA (Network Rover)
  • Kartu memori internal 4 GB dan kartu MicroSD berkemampuan 64 GB untuk mencatat, mengunduh, dan mengunggah data.

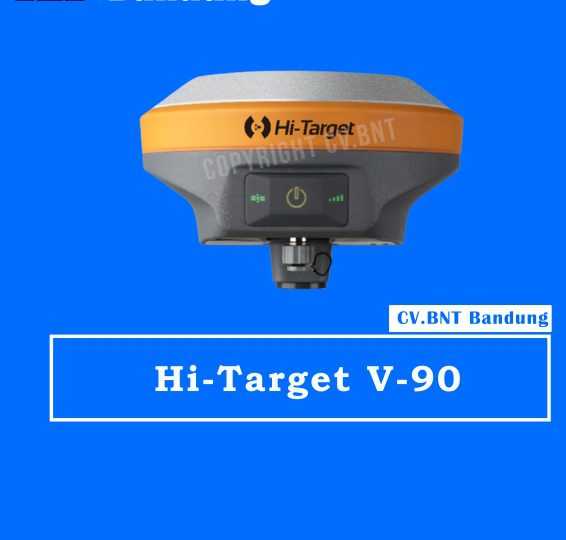

GPS RTK HI-TARGET V90

GPS RTK HI-TARGET V90

February 16, 2024 By admin Off

GPS RTK HI-TARGET V90

Fitur :

  • Kecil dan ringan
  • Beratnya hanya 950g.
  • Ukuran Diameter 153mm x Tinggi 83mm.

Pelacakan Multi-konstelasi GPS Geodetik RTK

  • 220 saluran pelacakan
  • Mendukung GPS, GLONASS, GALILEO, BDS, SBAS
  • NGS menyetujui antena GNSS pita penuh

Aplikasi Cerdas

  • Menawarkan survei kemiringan dengan sudut kemiringan maksimum 30 derajat.
  • Mendukung kalibrasi gelembung elektronik
  • Modul NFC internal membuat komunikasi Bluetooth cepat dan mudah.
  • Bantuan suara yang cerdas memandu operasi lapangan. Suara bisa DIY.
  • Data Rinex standar dan data mentah HI-TARGET direkam secara bersamaan.

Radio UHF Transceiver Opsional

  • Radio UHF transceiver memungkinkan mode kerja yang dapat dialihkan antara basis dan penjelajah.
  • Tiga jenis radio UHF internal menyediakan frekuensi yang berbeda berdasarkan kebutuhan pengguna. Radio UHF internal Pacific Crest TrimTalk © kompatibel dengan radio lain.

Koneksi Multi Jaringan

  • Mendukung GPRS, GSM dan WCDMA
  • Mendukung WIFI

Baterai yang Kuat

  • Didukung oleh baterai Li-ion berkapasitas tinggi (5000mAh) untuk memastikan pengoperasian sehari penuh

Desain Kasar

  • IP67 tahan debu dan tahan air
  • Mampu bertahan saat jatuh 3 meter secara alami ke beton



POSITIONING KINERJA

Statik dan Statik Cepat GNSS Survei

  • Horisontal …………………… 2.5mm + 0.5ppm RMS
  • Vertikal…………………………. 5mm + 0.5ppm RMS
  • Post Processing kinematik (PPK / Stop & Go) GNSS Survei
  • Horisontal ……………………… .. 1cm + 1ppm RMS
  • Vertikal ………………………… 2,5 cm + 1ppm RMS
  • Waktu inisialisasi ……… .Typically 10 menit untuk basis sementara 5 menit untuk rover
  • Kehandalan inisialisasi …… Biasanya> 99,9

Real Time Kinematik (RTK) Survei

Base Absolute

  • Horisontal ……………………… .. 8mm + 1ppm RMS
  • Vertikal…………………………. 15mm + 1ppm RMS
  • Jaringan RTK
  • Horisontal ……………………… .. 8mm + 0.5ppm RMS
  • Vertikal ………………………… .. 15mm + 0.5ppm RMS
  • Waktu inisialisasi …… .. … Biasanya <8 detik
  • Kehandalan inisialisasi …… .Typically> 99,9%
  • Positioning kode Differential GNSS
  • Horisontal………………………. 25cm + 1ppm RMS
  • Vertikal …………………………… 50cm + 1ppm RMS
  • SBAS ……… 0.50m Horizontal, Vertikal 0.85m

HI-TARGET Internal UHF Radio (Standard)

  • Frekuensi … 450 ~ 470MHz dengan 116 saluran
  • Daya transmisi … 0.5W, 1W, 2W disesuaikan
  • Kecepatan transmisi ……… .9.6Kbps, 19.2Kbps
  • jarak antara base dan rover ………… 0,3 ~ 5km khas, 8 ~ 10kmoptimal
  • Pacific Crest XDL Micro internal UHF Radio
  • Frekuensi …………………………… 0,403 ~ 473MHz
  • Transmisi daya ……………… 0.5W, 2W disesuaikan
  • Transmisi kecepatan …………….. Sampai 19.2Kbps
  • Mendukung sebagian besar protokol komunikasi radio
  • jarak antara base dan rover ……………………… 3 ~ 5 kilometer khas, 8 ~ 10km optim

HI-TARGET Internal UHF Radio (Standard)

  • Frekuensi … 450 ~ 470MHz dengan 116 saluran
  • Daya transmisi … 0.5W, 1W, 2W disesuaikan
  • Kecepatan transmisi ……… .9.6Kbps, 19.2Kbps
  • jarak antara base dan rover ………… 0,3 ~ 5km khas, 8 ~ 10kmoptimal
  • Pacific Crest XDL Micro internal UHF Radio
  • Frekuensi …………………………… 0,403 ~ 473MHz
  • Transmisi daya ……………… 0.5W, 2W disesuaikan
  • Transmisi kecepatan …………….. Sampai 19.2Kbps
  • Mendukung sebagian besar protokol komunikasi radio
  • jarak antara base dan rover ……………………… 3 ~ 5 kilometer khas, 8 ~ 10km optim

SISTEM KONFIGURASI

Sistem

  • Penyimpanan data 16GB internal storage (Mendukung hingga 32GB SD card eksternal)
  • Rekam GNS dan Format RINEX secara bersamaan



Data Format

  • Output posisi 1HZ, hingga 20Hz
  • CMR : CMR, CMR +, sCMRx input dan output
  • RTCM : RTCM 2.1, 2.3, 3.0, 3.1, 3.2 input dan output
  • Navigasi output ASCII : NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS
  • Navigasi output biner : GSOF

Note:
*Harga Dapat Berubah Sewaktu – waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.

HAMMER TEST PROCEQ ORIGINAL SCHMINDT TYPE L

HAMMER TEST PROCEQ ORIGINAL SCHMINDT TYPE L

February 16, 2024 By admin 0

Deskripsi Proceq Original Schmidt Type L – Concrete Hammer Test
Proceq Original Schmidt Type L

DIFFERENCE Type N & L:
* Type N: Standard impact energy. Minimum thickness of test object: 100 mm (3.9”’) and should be firmly fixed in the structure
* Type L: Low impact energy. Suitable for brittle objects or structures less than 100 mm (3.9”’) thick

OVERVIEW:
The original Schmidt hammer, type L is the ideal option for testing thin walled items with a thickness between 50 to 100 mm (2”” and 4”’) or for analyzing small components. It is also suitable for examining cast stone components which are sensitive to impact. In rock mechanics, the type L Original Schmidt is commonly used for the classification of rock cores and brittle rock.

The Type L Hammer is a portable and relatively inexpensive nstrument for measuring the surface hardness of rock. The hammer can be used efficiently in both the laboratory and the field.

The mechanism of operation is simple: a hammer released by a spring, indirectly impacts against the rock surface through a plunger and the rebound distance of the hammer is then read directly from the scale ranging from 10 to 70 MPa (1,450 to 10,152 psi).

The type L hammer is used on NX or larger core specimens or block specimens having an edge length of at least 6 cm. TC-3040 Calibration Anvil, manufactured from a special steel alloy, is used for the calibration of test hammers.

HAMMER TEST PROCEQ ORIGINAL SCHMIDT TYPE N

HAMMER TEST PROCEQ ORIGINAL SCHMIDT TYPE N

February 16, 2024 By admin Off

Deskripsi Proceq Original Schmidt Type N – Concrete Hammer Test
Proceq Schmidt Hammer, Type N

DIFFERENCE Type N & L:
* Type N: Standard impact energy. Minimum thickness of test object: 100 mm (3.9”’) and should be firmly fixed in the structure
* Type L: Low impact energy. Suitable for brittle objects or structures less than 100 mm (3.9”’) thick

OVERVIEW:
The original Schmidt hammer, type N, is designed for non-destructive testing of concrete items 4″ (100mm) or more in thickness, or concrete with a maximum particle size less than or equal to 1.25″ (32mm). It is designed for testing concrete within a compressive strength range of 1,450 to 10,152 psi (10 to 70 N/mm2) and impact energy of the test is 1.6 ft-lbs (2.207 Nm). The (type N) Schmidt hammer is pressed against the concrete structure and the rebound values are displayed on a mechanical sliding scale. These values can then be correlated to compressive strength by using the conversion table chart affixed to the hammer. The original Schmidt hammer is known for its durability and accuracy.

HAMMER TEST PROCEQ ORIGINAL SCHMIDT LIVE TYPE L

HAMMER TEST PROCEQ ORIGINAL SCHMIDT LIVE TYPE L

February 16, 2024 By admin 0

Deskripsi Proceq Original Schmidt Live Type L – Concrete Hammer Test
Proceq Original Schmidt Live Type L

DIFFERENCE Type N & L:
* Type N: Standard impact energy. Minimum thickness of test object: 100 mm (3.9) and should be firmly fixed in the structure
* Type L: Low impact energy. Suitable for brittle objects or structures less than 100 mm (3.9) thick

OVERVIEW:
The Original Schmidt Live is a uniquely versatile hammer that can be used as stand-alone analog hammer, a stand-alone digital hammer, together with a Bluetooth printer and finally as the worlds most advanced R-value concrete test hammer with the Schmidt Live app

KEY FEATURES:
* Comprehensive Apple iOS app for measuring, reporting and analysis
* Web reporting tool for instant offsite data availability and synchronizing
* Light and strong fiber-reinforced shell
* Powered by flight-safe AAA batteries
* Dual displays: analog and backlit digital
* All mechanical components are Original Schmidt components to ensure standards compatibility and durability

MEASUREMENTS:
* Automatically detects and corrects for impact angle
* Displays the series on-screen as you work
* Series validity checked automatically
* Review an entire series
* Delete impacts
* Test regions
* Select units, form factor and correlation curves
* Create your own custom curves
* Create custom curves databases for your own mixes

WITH Apple iOS app, you can:
* Allows you to test in accordance with major standards
* Visual reports are generated using lists, bar charts, and statistics
* Records data from the app to a web reporting tool
* Report export options of PDF or CSV
* Records GPS locations, enables adding notes, images and audio comments using the Logbook feature for full measurement activity traceability. Logbook feature for full measurement activity summaries
* Hammer verification management to help keep hammers calibrated as required by standards
* Impact results can be heard live in audio on Apple iOS devices via text-to-speech
