Antena UHF/Antena Internal

1. Antena GPS GNSS RTK ini memiliki fungsi sebagai penghubung antara satu receiver dengan receiver lainnya (base dan rover) dengan syarat harus dalam 1 frekuensi yang sama
2. Tersedia dalamm 2 model yaitu drat dan klik
3. Pada antena ini, antena model drat memiliki frekuensi 462-467 MHz
4. Biasa digunakan untuk GNSS RTK Foif N90, Geo-Fennel,CHCNav,Comnav (harus dengan frekuensi yang sama)
5. Antena ini memiliki panjang: 34 cm, sekitar 13.39 inci
6. Port konektor: TNC





AL-3DG Green Multi Line Laser

Alat ini dirancang khusus untuk tugas pemasangan interior dan eksterior, AL-3DG dilengkapi dengan dua balok vertikal dan satu balok horizontal untuk memancarkan garis di sekitar pekerjaan Anda.
Ukur sudut 90 derajat dengan mudah dan akurat berkat fungsi sinar laser garis silang, tempat balok horizontal dan vertikal bersilangan.

Fitur
1. Sinar hijau 3 Dimensi laser dilengkapi dengan penjepit dan receiver
2. Baterai lithium yang dapat diisi ulang
3. Waktu pengoperasian: 20 jam dengan satu blok berjalan dan 8 jam dengan semua blok berjalan
4. Akurasi ± 2mm pada 10m
5. Target Plate
6. Jangkauan sinar hingga 20m (internal) hingga 30m dengan receiver untuk penggunaan eksternal

harga di atas bisa naik atau turun tergantung kurs dollar info sebelum order bisa chat dl ya gan/sis
untuk kualitas jangan ragu bisa cek kita di website atau kantor kita di bandung atau yogyakarta.
terima kasih.


RENTAL GPS RTK MURAH

JUAL ALAT LAB SIPIL

JASA TOPOGRAFI

Rotating Laser Aline AL-HVG

Laser ini memiliki mode pemindaian yang menarik garis terang di bagian yang terisolasi dari area kerja dengan melakukan dithering antara dua titik dengan sudut yang ditetapkan. Garis ini kemudian dapat dipindahkan searah jarum jam dan berlawanan arah jarum jam di sekitar tempat kerja ke area kerja yang diinginkan.

AL-HVG Green Rotating Self – Leveling Laser dilengkapi dengan laser AL-HVG, detektor dan penjepit, kaca peningkat laser hijau *, remote control, baterai isi ulang, charger, braket pemasangan di dinding, dan tas jinjing.

Fitur:
1. Aplikasi penyamarataan elektronik
2. Self-leveling horizontal dan vertikal
3. Plumb up and down beam untuk pekerjaan tata letak 90 °
4. Fungsi pemintalan searah jarum jam dan berlawanan arah jarum jam
5. Operasi kemiringan ganda
6. Jarak kerja 500m
7. Akurasi: +/- 3mm pada 30m
8. Paket baterai NiMh



The Spectra Precision FOCUS DL-15 digital level is a new, very affordable, digital level delivering simplicity, ease-of-use and versatile onboard software to provide consistent precision, performance and productivity.

FOCUS DL-15: Instantly Productive

The Spectra Precision FOCUS DL-15 digital level provides consistent height measurement precision through electronic reading of a standard bar code staff to an accuracy of 1.5 mm (0.005 ft.). Featuring internal data storage and a distance measurement range of 100m (328 ft.), the Spectra Precision digital level is affordable, versatile, and easy to use, an ideal choice for value.

Powerful Onboard Software Functions
Easy to learn and use, instantly productive, the FOCUS DL-15 provides consistent measurement precision. It eliminates reading and recording errors and reduces operator eye fatigue.Use on a wide
range and variety of tasks requiring precise height determination. It enables the user to initiate a measurement and record the data at the push of a button.The FOCUS DL-15 contains measurement routines for common leveling tasks including height determination, calculation of elevations, height differences and Cut and Fill Stakeout.Simple data transfer from the FOCUS DL-15 via USB cable.

SPESIFIKASI DIGITAL THEODOLITE TOPCON DT-305L

Telescope

  • Length: 152 mm
  • Objective lens: 45 mm
  • Magnification: 30x power
  • Field of view: 1°30′
  • Resolving power: 2.5″
  • Minimum focus: 100 cm
  • Stadia ratio: 100
  • Stadia constant: 0

Angle Measurement

  • Method: Rotary Absolute Encoder
  • Detecting: 1 horizontal sides, 1 vertical sides
  • Minimum reading: 1″/5″ arc seconds, 0.01m/ 0.1m
  • Accuracy: 5″

Display

  • Unit 2 sides

Tilt Angle Compensation

  • Type: Automatic vertical compensator
  • Range of compensation: ±3′
  • Compensation constant: Can be changed (compensation is done at the same time with vertical angle 0 point)

<strong>Optical Plummet Telescope

  • Magnification: 3x power
  • Minimum focus: 0.5 m

Level Sensitivity

  • Plate level 30″/2mm
  • Circular leve 10’/2mm

Temperature

  • Operating temperature range: -20 to 50°C (-4 to 122°F)
  • Storage temperature range: -30 to 60°C (-22 to 140°F)  (no condensation)

Environmental durability

  • Dust and water protection IP66 (IEC 60529: 2001)

Power Supply (Standard)

  • Power source 4 AA alkaline batteries

Working duration at 20°C (Standard)

  • Theodolite only about 230 hours
  • Laser only about 80 hours
  • Theodolite and Laser about 55 hours

Power Supply (Option)

  • Power source BDC71 (Optional accessory)

Working duration at 20°C (Option)

  • Theodolite only about 300 hours
  • Laser only about 100 hours
  • Theodolite and Laser about 70 hours

Tribrach

  • Type Detachable

Laser-pointer

  • Signal source Red laser diode (633 nm)
  • Maximum output 0.6 mW
  • Laser 2 Class
  • Laser beam range 50m (in daylight)

SUDAH TERMASUK AKSESORIS KOMPLIT STANDAR

  • 1x RAMBU UKUR
  • 1x TRIPOD/STATIF

*Harga Bisa Berubah Konfirmasi Terlebih Dahulu

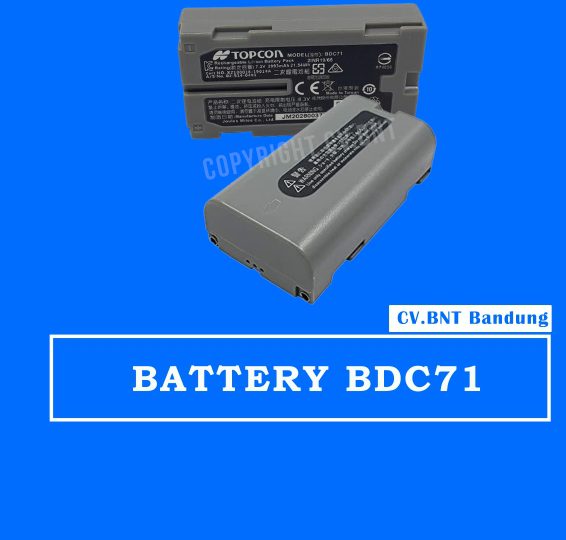

Spesifikasi:
Voltage: 7.2V
​Battery Type: Li-ion
Capacity: 2993mAh 21.54Wh
Colour : Grey Black
Fit for Total Station Topcon GM 52, Sokkia IM 52
