Results for "total station"

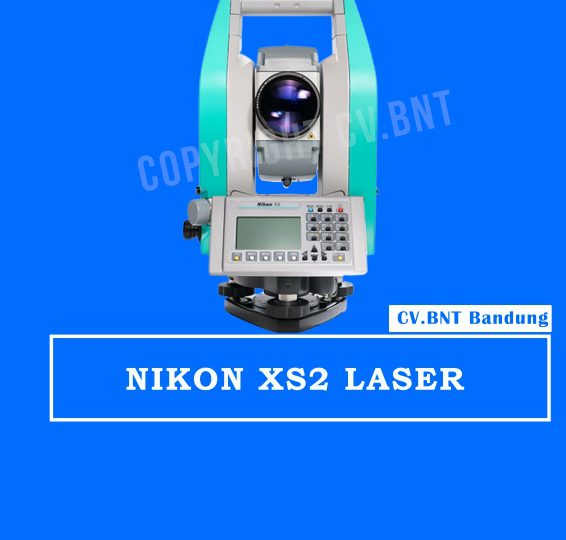

TOTAL STATION NIKON-XS2

TOTAL STATION NIKON-XS2

February 16, 2024 By admin 0

TOTAL STATION NIKON XS2

Features

  • Accuracy options: 1 second, 2 second, 3 second or 5 second
  • Optional laser or optical plummet
  • Reflectorless range up to 2,600 feet
  • Range up to 16,404 feet with a single prism
  • 50,000-point memory
  • Nikon onboard software
  • 30x telescope magnification
  • PIN security
  • Dual-axis compensation with liquid-electric detection
  • Integrated Bluetooth
  • Serial RS-232C & USB port
  • Hot-swappable batteries
  • Up to 22-hour battery life
  • Dual backlit, graphic LCD displays with full-numeric keypad
  • IP66 dustproof and water resistant

Featuring dual-axis compensation and autofocus, the Nikon XS Series Reflectorless Total Station provides highly-accurate distance and angle measurements in the field. It has a reflectorless range of up to 2,600 feet and up to 16,400 feet using a single prism. In addition, this Nikon total station has a serial RS-232C, USB port, and an integrated Bluetooth for easy file transfer and connection with data collectors.

With 50,000 points of internal memory, the XS total station is equipped with an onboard Nikon surveying software that guarantees productive operation and seamless data storage. This reliable surveying equipment features 30x telescope magnification and PIN security to prevent unauthorize use.

This Nikon total station is protected from dust and powerful water jets. It is integrated with dual backlit, graphic displays with a full numeric keypad for easy reading of measurements, even under low-light conditions. Works up to 22 hours, the XS total station uses two Li-ion batteries that are hot-swappable for all-day use.

Configuration Options

The Nikon XS Series Reflectorless Total Station offers four accuracies and two plummet options to suit your surveying needs. All are supported by a two-year manufacturer’s warranty. Please select your preference from the drop-down menu above.



SUDAH TERMASUK AKSESORIS KOMPLIT STANDAR
1x PRISMA AK
1x PRISMA ADS
1x POLE
2x TRIPOD



Note:
*Harga Dapat Berubah Sewaktu – waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.

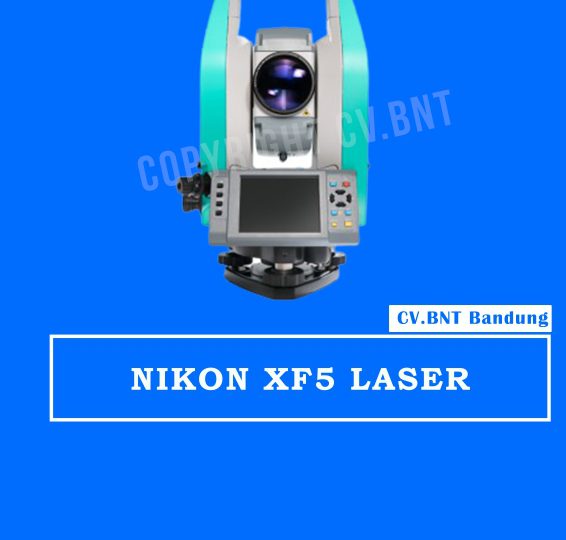

TOTAL STATION Nikon-XF5

TOTAL STATION Nikon-XF5

February 16, 2024 By admin 0

TOTAL STATION NIKON XF5

Features for Nikon HNA40503 XF Series Reflectorless Total Station

  • Accuracy options: 1 second, 2 second, 3 second or 5 second
  • Optional laser or optical plummet
  • Reflectorless range up to 2,600 feet
  • Range up to 16,404 feet with a single prism
  • 4GB flash memory & 512 MB RAM
  • Long-range Class 1 Bluetooth
  • RS-232C & 2 x USB ports (Host & Client)
  • 30x magnification
  • PIN security
  • Autofocus
  • Trimble Locate2Protect ready
  • Dual-axis compensation
  • Liquid-electric detection
  • Nikon optics for crisp, bright images
  • Compatible with Survey Basic, Survey Pro, and Layout Pro onboard software
  • Up to 14-hour battery life
  • Dual color touchscreen displays
  • IP66 dustproof and water resistant
  • Lightweight and compact

The Nikon XF Series Reflectorless Total Station is equipped with an autofocus and powerful non-prism EDM with a measuring range of up to 2,600 feet. Using a single prism, it increases that range up to 16,400 feet. This surveying equipment features dual-axis compensation with liquid-electric detection for accurate angle measurements. In addition, the integrated superior Nikon optics with 30x magnification provides crisp and bright sightings which reduce eye fatigue.

For easy data transfer and connection with data collectors, this Nikon total station is integrated with a Class 1 Bluetooth that has a range of up to 328 feet. The XF reflectorless total station has a 512 MB RAM and 4 GB flash memory for storage. Plus, it comes with RS-232C and two USB ports that enable a seamless connection with computers for transferring of files. It has PIN security to prevent unauthorized use and is Trimble Locate2Protect ready for effective tracking of lost or stolen equipment.

Featuring dual color touchscreen displays, the XF series allows surveyors and construction professionals to run Survey Basic, Survey Pro, and Layout Pro onboard software (sold separately). This Nikon total station comes with an IP66 protection rating, making it dustproof and water resistant. With its lightweight and compact design, the XF total station is easy to handle, store and transport.

Configuration Options

The Nikon XF Series Reflectorless Total Station offers four accuracies with two choices of plummets. Please select your preference from the drop-down menu above.



SUDAH TERMASUK AKSESORIS KOMPLIT STANDAR
1x PRISMA AK
1x PRISMA ADS
1x POLE
2x TRIPOD



Note:
*Harga Dapat Berubah Sewaktu – waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.

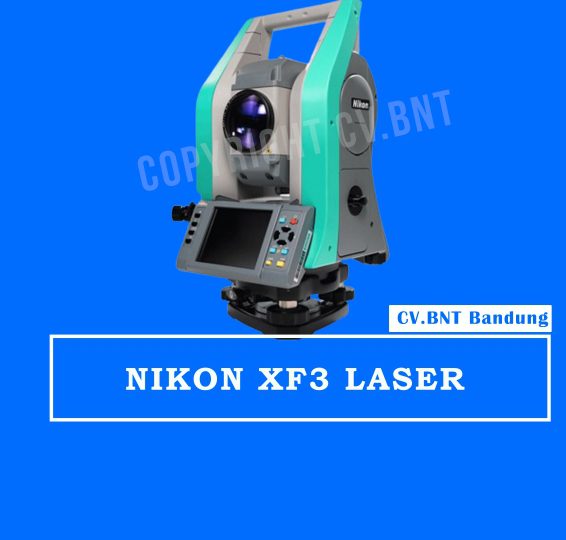

TOTAL STATION NIKON-XF3

TOTAL STATION NIKON-XF3

February 16, 2024 By admin 0

TOTAL STATION NIKON XF3

Total Station Nikon XF 3 Menampilkan layar sentuh warna layar ganda berukuran penuh, seri XF 3 mampu menghasilkan gambar yang tajam dan terang yang mengurangi kelelahan mata. total Station ini dilengkapi dengan peringkat perlindungan IP66 yang membuat perangkat tahan debu dan tahan air. Dengan desain yang ringan, Total Station Nikon XF 3 mudah ditangani, disimpan, dan diangkut.

Fitur:

  • Akurai 3 Detik
  • Laser atau optik opsional
  • Reflectorless hingga 2.600 kaki
  • Jangkauan hingga 16.404 kaki dengan satu prisma
  • RAM 512 MB & memori flash 4GB
  • Bluetooth Kelas 1 jarak jauh
  • RS-232C dengan 2 port USB
  • Pembesaran 30x
  • Keamanan PIN
  • Autofocus
  • Trimble Locate2Protect siap
  • Kompensasi sumbu ganda
  • Deteksi listrik cair
  • Gambar yang tajam dan cerah
  • Perangkat lunak onboard yang kuat – Survey Basic, Survey Pro atau Layout Pro
  • Dual-face, layar touchscreen warna ukuran penuh
  • IP66 tahan debu dan tahan air
  • Ringan dan kompak



SUDAH TERMASUK AKSESORIS KOMPLIT STANDAR
1x PRISMA AK
1x PRISMA ADS
1x POLE
2x TRIPOD



Note:
*Harga Dapat Berubah Sewaktu – waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.

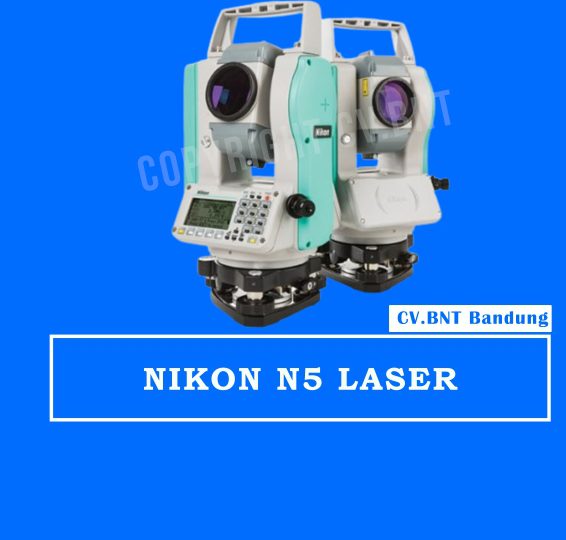

TOTAL STATION NIKON N5

TOTAL STATION NIKON N5

February 16, 2024 By admin 0

TOTAL STATION NIKON N5

The Nikon N Series Total Station is an advanced EDM designed to make surveying quick and easy. You have two options to operate the device: the prism mode has a range of 13,000 feet while the reflectorless option works up to 1,900 feet. You can choose between 2” and 5” accuracy so that the total station will fit your application.

<strong>Easy Operation</strong> The N Series comes with a laser pointer for faster locking on target. Nikon’s onboard software collects up to 50,000 data points and can be transferred wirelessly via Bluetooth. Simply tap your phone on the NFC sensor, and it will automatically connect to the total station.

The Total Station File Transfer app for iOS and Android devices allows you to transfer coordinate data to the N Series. It also captures the collected information from the EDM for transmission to your office. All these features make your work more efficient and save you time.
Rugged and Reliable Built to standard with IP55 dust and water protection, you can confidently use this in the field even in inclement weather. For added security, a rain/dust cover is included in the package for harsher environs. In cases where you need assistance, Nikon’s excellent customer support and service network will ensure that your devices are up to the task.
Flexible Battery and Power Options The device comes with a single replaceable Li-ion battery that lasts up to 14 hours of continuous use. You can use any Type-C USB charging port, like the charger on your vehicle or your power bank, to recharge the batteries.
Configuration Options
The Nikon N Series Total Stations comes in two options. Please choose your preference from the menu above.

  • HQA46700: 2” Accuracy (Dual Display)
  • HQA46710: 5” Accuracy (Single Display)

DISTANCE MEASUREMENT

Range with Nikon specified prisms

  • With reflector sheet (5 × 5 cm): 1.5 m to 300 m (4.9 ft to 984 ft)
  • With single prism 6.25 cm (2.5 in): 4,000 m (13,123 ft)

Range reflectorless mode (Nikon N)

  • KGC (18%)
    1. Good: 400 m (1312 ft)
    2. Normal: 300 m (984 ft)
    3. Difficult: 235 m (771 ft)
  • KGC (90%)
    1. Good: 600 m (1968 ft)
    2. Normal: 500 m (1640 ft)
    3. Difficult: 250 m (820 ft)

Accuracy

  • Prism: ±(2+2 ppm × D) mm
  • Reflector sheet: ±(3+2 ppm × D) mm
  • Reflectorless: ±(3+2 ppm × D) mm

Measuring interval

  • Prism mode
    1. Precise mode     : 1.1 sec.
    2. Normal mode    : 0.6 sec.
    3. Fast mode          : 0.4 sec.
  • Reflectorless mode (Nikon N)
    1. Precise mode    : 1.1 sec.
    2. Normal mode    : 0.6 sec.
    3. Fast mode          : 0.4 sec.

SUDAH TERMASUK AKSESORIS KOMPLIT STANDAR

  • 1x PRISMA AK
  • 1x PRISMA ADS
  • 1x POLE
  • 2x TRIPOD



Note:
*Harga Dapat Berubah Sewaktu – waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.

TOTAL STATION NIKON N2

TOTAL STATION NIKON N2

February 16, 2024 By admin Off

TOTAL STATION NIKON N2

DISTANCE MEASUREMENT

  • Range with Nikon specified prisms
    With reflector sheet (5 × 5 cm)                 : 1.5 m to 300 m (4.9 ft to 984 ft)
    With single prism 6.25 cm (2.5 in)            : 4,000 m (13,123 ft)
  • KGC (18%)
    Good¹      : 400 m (1312 ft)
    Normal²    : 300 m (984 ft)
    Difficult³    : 235 m (771 ft)
  • KGC (90%)
    Good¹         : 600 m (1968 ft)
    Normal²      : 500 m (1640 ft)
    Difficult³     : 250 m (820 ft)
  • Accuracy
    Prism5              : ±(2+2 ppm × D) mm
    Reflector sheet       : ±(3+2 ppm × D) mm
    Reflectorless6      : ±(3+2 ppm × D) mm
  • Measuring interval7
    Prism mode
    Precise mode     : 1.1 sec.
    Normal mode    : 0.6 sec.
    Fast mode          : 0.4 sec.
    Reflectorless mode (Nikon N)
    Precise mode    : 1.1 sec.
    Normal mode    : 0.6 sec.
    Fast mode          : 0.4 sec.
  • Least count
    Precise mode   : 0.1 mm (0.0002 ft)
    Normal mode    : 1 mm (0.002 ft)
  • ANGLE MEASUREMENT
    Accuracy8 (horizontal and vertical) : 2“ (0.6 mgon), or 5“ (1.5 mgon)
    Reading system     : Photoelectric detection by incremental encoder
    Circle diameter    : 88 mm (3.46 in)
    Horizontal angle   : 2”:Diametrical, 5”:Single
    Vertical angle     : Single
    Minimum increment   : 1/5/10” (0.2/1/2 mgon)
  • TELESCOPE
    Tube length : 125 mm (4.9 in)
    Image   : Erect
    Magnification      : 30× (18x/36x with optional eyepieces)
    Effective diameter of objective   : 45 mm (1.77in)
    Field of view      : 1°20‘
    Resolving power             : 3”
    Minimum focusing distance    : 1.5 m (4.9 ft)
    Laser Pointer (Nikon N)      : Coaxial Red Light
  • COMMUNICATIONS
    Communication ports    : 1 x serial (RS-232C)
  • WIRELESS COMMUNICATIONS
    Bluetooth  : Integrated
  • GENERAL SPECIFICATIONS
    Level vials
    Sensitivity of Circular level vial   : 10‘/2 mm
    Optical plummet
    Image    :Erect
    Magnification  : 3X
    Field of view     : 5°
    Focusing range  : 0.5 m (1.6 ft) to ∞
    Display
    NIKON N2 2“     : Both sides, backlit, graphic LCD (128 × 64 pixel)
    NIKON N5 5“     : Single side, backlit, graphic LCD (128 × 64 pixel)
    Point memory    : 50,000 records
    Dimensions (W x D x H) :168 mm x 173 mm x 335 mm (6.6 in x 6.8 in x 13.1 in)
    Weight (approx.)
    Main unit (without battery)     : 4.9 kg (10.8 lb)
    Battery      : 0.1 kg (0.2 lb)
    Battery charger  : 0.05 kg (0.1 lb)
    Carrying case  : 2.5 kg (5.5 lb)
  • Power
    Clip-on Li-on battery   : x1 incl.
    Operating time9 (per battery)
    Continuous distance/angle measurement    : approx. 4.5 hours
    Distance/angle measurement every 30 seconds : approx. 14 hours
    Continuous angle measurement     : approx. 22 hours
  • Charging time
    Full charge   : 6 hours
    External power supply   : Yes

SUDAH TERMASUK AKSESORIS KOMPLIT STANDAR
1x PRISMA AK
1x PRISMA ADS
1x POLE
2x TRIPOD



Note:
*Harga Dapat Berubah Sewaktu – waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.

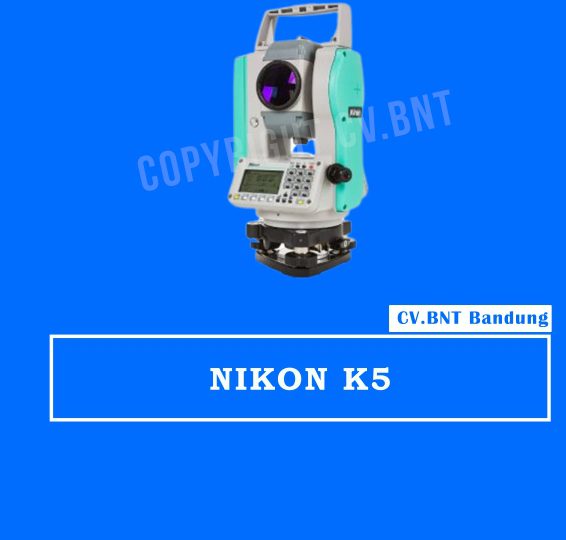

total station nikon K5

TOTAL STATION NIKON K5

February 16, 2024 By admin Off

Spesifikasi NIKON K5

  • GENERAL
    Weight 11 lb
    Dimensions 13.1 in x 6.6 in x 6.8 in
    Protection Class IP55
    Internal Memory 50,000 records
  • ANGLE MEASUREMENT
    Measuring Method/Reading System Prism
    Detection Method Photoelectric detection by incremental encoder
    Minimum Reading .1/5/10” (0.2/1/2 mgon)
    Accuracy 5“
    Diameter of Circle 3.46 in
  • DISTANCE MEASUREMENT
    EDM Accuracy (Precision) ±(2+2 ppm × D) mm
  • TITL SENSOR/COMPENSATOR
    Range .±3‘
    Type Dual axis
    Method Liquid-electric detection
  • BATTERY/POWER
    Power Source Li-on battery
    Battery Life Upto 22 hours
  • OPTICAL PLUMMET
    Image Erect
    Magnification 3X
    Field of View 5°
    Focus Range 0.5 m (1.6 ft) to 8
  • LEVEL
    Circular Bubble Vial 10‘/2 mm
  • TELESCOPE
    Length of Tube 4.9 in
    Image Erect
    Diameter of Objective Lens (Aperture) 1.77in
    Magnification 30× (18x/36x with optional eyepieces)
    Field of View 1°20
    Resolving Power . 3”
    Minimum Focus Distance 4.9 ft
  • DISPLAY AND KEYPAD
    Type Single LCD display
    Touchscreen No
    Backlight Yes
    Pixels 128 × 64 pixel
  • TEMPERATURE
    Operating –4 °F to +122 °F
  • Measurement Range (under fair weather conditions)
    Single Prism 13,123 ft
    No Prism n/a
  • INTERFACE
    Bluetooth  : Integrated

SUDAH TERMASUK AKSESORIS KOMPLIT STANDAR
1x PRISMA AK
1x PRISMA ADS
1x POLE
2x TRIPOD



Note:
*Harga Dapat Berubah Sewaktu – waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.
